Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layouts, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure the LM3549SQ operates within its SOA, monitor the input voltage, output current, and junction temperature. Make sure the input voltage is within the recommended range, the output current is below the maximum rating, and the junction temperature is below the maximum rating of 150°C.
Input voltage ripple can affect the LM3549SQ's performance by causing output voltage ripple, increasing noise, and reducing efficiency. It's recommended to use a low-ESR input capacitor and to filter the input voltage to minimize ripple.
The LM3549SQ is rated for operation up to 150°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management, such as using a heat sink or thermal interface material, to maintain reliable operation.
To troubleshoot issues with the LM3549SQ, follow a systematic approach: check the input voltage, output voltage, and output current; verify the PCB layout and component values; check for thermal issues; and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3549SQ/NOPB Overview

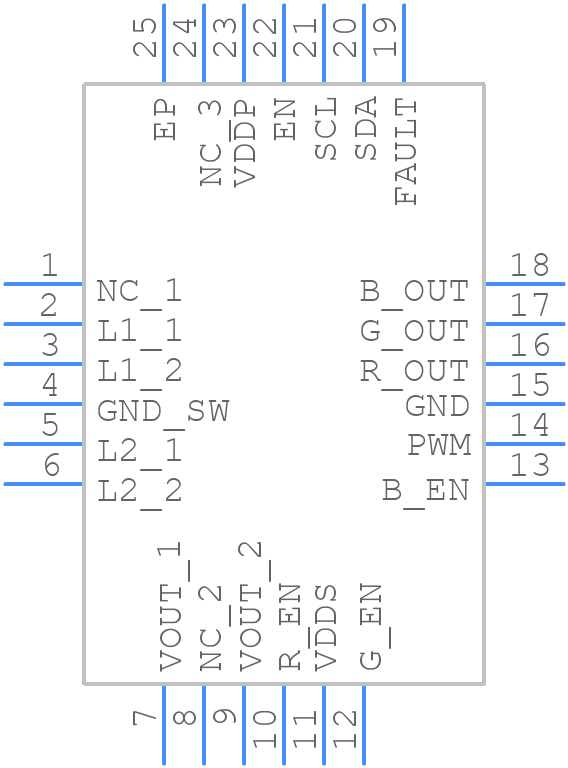

Use the download button to access the LM3549SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM354,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
