Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are of high quality and have low ESR. Additionally, ensure that the feedback resistors are properly sized and that the loop gain is sufficient.
The maximum ambient temperature range for the LM3555TLX/NOPB is -40°C to 125°C, but the device's performance may degrade at higher temperatures. It's recommended to derate the device's performance according to the temperature derating curve provided in the datasheet.
Yes, the LM3555TLX/NOPB is qualified for automotive and high-reliability applications, but it's recommended to follow the specific requirements and guidelines for these applications, such as AEC-Q100 and ISO 26262.
To troubleshoot issues, start by verifying the PCB layout and component values, and then use a scope or other measurement tools to check the input and output waveforms, voltage levels, and noise spectra. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3555TLX/NOPB Overview

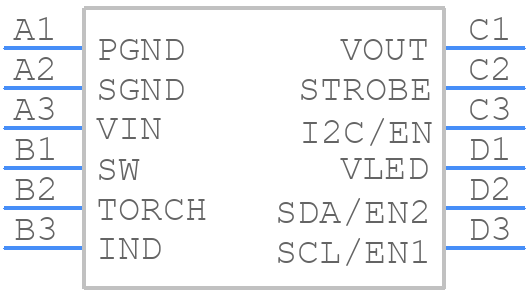

Use the download button to access the LM3555TLX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM355,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
