Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, make sure to follow the datasheet's guidelines for component selection, such as using a suitable output capacitor with a low ESR, and a sufficient input capacitor. Additionally, ensure that the feedback network is properly compensated and that the loop gain is sufficient.
The maximum ambient temperature range for the LM3557SD-2/NOPB is -40°C to 125°C, but the junction temperature should not exceed 150°C. It's also important to consider the thermal resistance of the package and the PCB when designing the system.
Yes, the LM3557SD-2/NOPB is qualified for automotive and high-reliability applications, but it's essential to follow the recommended design and testing guidelines to ensure the device meets the required specifications and standards.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values to ensure they match the recommended design. Use an oscilloscope to measure the output voltage ripple and switching frequency. If the issue persists, consult the datasheet and application notes for guidance or contact Texas Instruments' support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3557SD-2/NOPB Overview

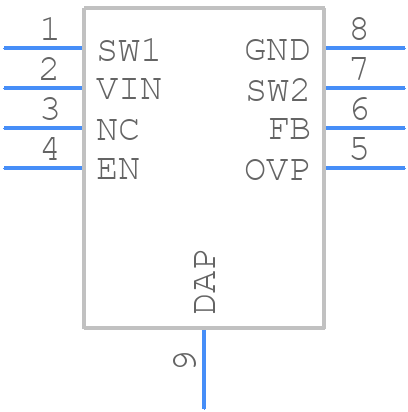

Use the download button to access the LM3557SD-2/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM355,
or try a keyword search, such as Switching Regulator or Controllers
