Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general guidelines for switching regulator layouts, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI.
The datasheet provides a formula for calculating the inductor value, but it's also important to consider factors such as inductor core material, saturation current, and DC resistance. A good starting point is to use an inductor with a value between 1-10uH and a saturation current rating above the peak current of the output.
The datasheet specifies an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. As a general rule, the ambient temperature should be kept below 85°C to ensure reliable operation.
The LM3578AMX is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design and testing. However, it's recommended to consult with Texas Instruments or a qualified reliability engineer to ensure that the device meets the specific requirements of the application.
Common issues with the LM3578AMX can be caused by poor PCB layout, incorrect component selection, or inadequate input/output filtering. To troubleshoot, start by checking the PCB layout and component values, then use an oscilloscope to measure the input/output waveforms and identify any signs of oscillation or instability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3578AMX Overview

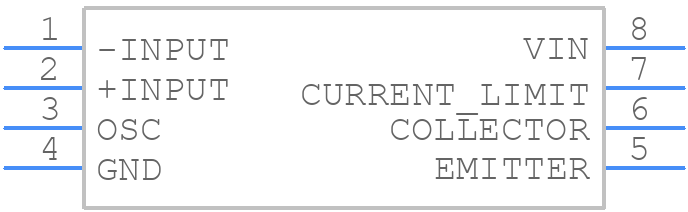

Use the download button to access the LM3578AMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM357,
or try a keyword search, such as Switching Regulator or Controllers
