LM358EDR2G - onsemi

Description: Short Circuit Protected Outputs; Low Input Bias Currents; Single Supply Operation: 3.0 V to 32 V ; Single and Split Supply Operation; Internally Compensated; ESD Clamps on the Inputs Increase Ruggedness of the Device without Affecting Operation; True Differential Input Stage; Common Mode Range Extends to Negative Supply; Pb-Free Packages are Available

Download LM358EDR2G Model

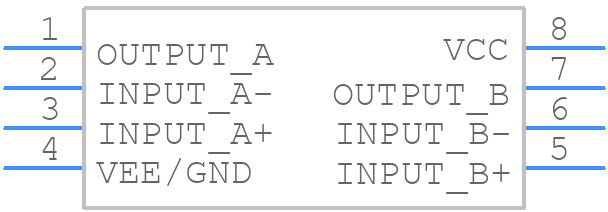

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM358EDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC
click to zoom
3D Models
LM358EDR2G - onsemi  - 3D model - Small Outline Packages - 8-Pin SOIC
click to zoom

LM358EDR2G Details

  • Manufacturer Part Number:

    LM358EDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.75

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Common-mode Reject Ratio-Min:

    65 dB

  • Common-mode Reject Ratio-Nom:

    70 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.15 µA

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Offset:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.6 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    32 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    15000

  • Width:

    3.9 mm

LM358EDR2G Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LM358EDR2G is 670mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance (125°C/W) specified in the datasheet.
  • While the LM358EDR2G is an op-amp, it can be used as a comparator in some applications. However, it's not ideal for high-speed or high-precision comparator applications due to its limited bandwidth and slew rate. A dedicated comparator IC like the LM339 or LM2901 may be a better choice for such applications.
  • To ensure stability, make sure to follow proper PCB layout practices, use a stable power supply, and add sufficient decoupling capacitors. Additionally, consider adding a compensation capacitor (e.g., 10nF to 100nF) between the output and the inverting input to improve stability and reduce oscillations.
  • The input impedance of the LM358EDR2G is typically around 2MΩ, which is relatively high. This makes it suitable for use with high-impedance sources or in applications where a high input impedance is required.
  • Yes, the LM358EDR2G can be used in a single-supply configuration. However, the input common-mode voltage range is limited to within 2V of the positive supply rail. Ensure that the input signals are within this range to maintain proper operation.
