Part Image

LM358MX - Texas Instruments

Description: Operational Amplifiers - Op Amps Low Power Dual Operational Amplifier 8-SOIC 0 to 70

Download LM358MX Model

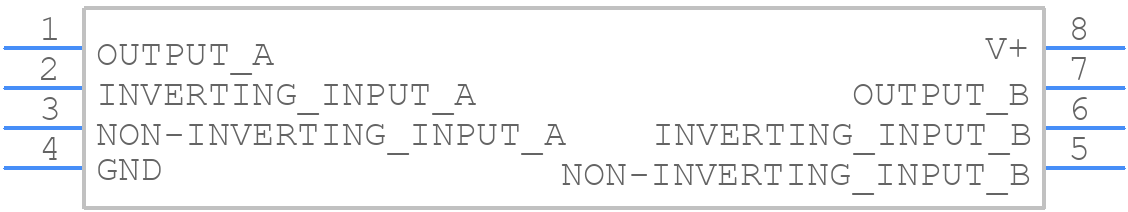

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM358MX - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LM358MX - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

LM358MX Details

  • Manufacturer Part Number:

    LM358MX

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Lifetime Buy

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Reach Compliance Code:

    Not_compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    1993-01-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0.94

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.05 µA

  • Bias Current-Max (IIB) @25C:

    0.15 µA

  • Common-mode Reject Ratio-Min:

    65 dB

  • Common-mode Reject Ratio-Nom:

    85 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.05 µA

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    235

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.1 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage Limit-Max:

    32 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    15000

  • Wideband:

    NO

  • Width:

    3.9 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM358MX Overview

Use the download button to access the LM358MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM358, or try a keyword search, such as Operational Amplifiers

Parts related to LM358MX

Showing 0 results

LM358MX Alternates

Showing results

Image Part Number Model
Part Image LM358MX/NOPB Rochester Electronics LLC

DUAL OP-AMP, 9000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO8, SOIC-8

Part Image KA358DTF Rochester Electronics LLC

DUAL OP-AMP, 9000uV OFFSET-MAX, PDSO8, SOIC-8

Part Image LM358MX Fairchild Semiconductor Corporation

Operational Amplifier, 2 Func, 9000uV Offset-Max, BIPolar, PDSO8, SOP-8

Part Image LM358DR2 onsemi

Operational Amplifier, Single Supply, Dual, SOIC-8 Narrow Body, 2500-REEL

Part Image LM358D Samsung Semiconductor

Operational Amplifier, 2 Func, 9000uV Offset-Max, BIPolar, PDSO8, SOP-8

For a full list of alternate parts for LM358MX, check out Findchips.com
