LM35DM/NOPB - Texas Instruments

Description: ±0.5°C Temperature Sensor with Analog Output with 30V Capability

Download LM35DM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

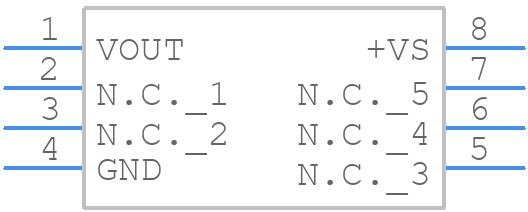

LM35DM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM35DM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
LM35DM/NOPB - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

LM35DM/NOPB Details

  • Manufacturer Part Number:

    LM35DM/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, SO-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.54 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Linearity (Cel):

    0.2 Cel

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.114 mA

  • Operating Temperature-Max:

    100 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • R0-Nom:

    0.4 Ω

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    4 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

LM35DM/NOPB Frequently Asked Questions (FAQs)

  • The LM35DM/NOPB has an accuracy of ±0.5°C at room temperature (25°C) and ±1°C over the entire operating range of -55°C to 150°C.
  • The LM35DM/NOPB has an analog output that can be connected directly to an analog-to-digital converter (ADC) input on a microcontroller. The output voltage is proportional to the temperature, with 10mV/°C.
  • The LM35DM/NOPB has a typical quiescent current of 60μA and a maximum supply current of 100μA, making it suitable for battery-powered applications.
  • Yes, the LM35DM/NOPB is rated for operation up to 150°C, making it suitable for high-temperature applications such as automotive, industrial, and aerospace.
  • The LM35DM/NOPB does not require calibration. It is a calibrated device with an internal voltage reference and temperature sensor, providing a direct temperature reading.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM35DM/NOPB Overview

Use the download button to access the LM35DM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM35D, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
