LM36010YKBR - Texas Instruments

Description: LM36010 Synchronous Boost LED Flash Driver

Download LM36010YKBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

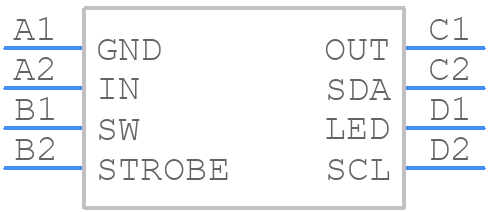

LM36010YKBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM36010YKBR - Texas Instruments PCB footprint - BGA - BGA - YKB0008
click to zoom
3D Models
LM36010YKBR - Texas Instruments - 3D model - BGA - YKB0008
click to zoom

LM36010YKBR Details

  • Manufacturer Part Number:

    LM36010YKBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-07-22

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    1.512 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.8 mm

LM36010YKBR Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM36010YKBR should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the thermal vias are connected to a solid ground plane. Keep the high-current paths short and wide, and avoid routing high-frequency signals near the device.
  • Choose an input capacitor with low ESR (Equivalent Series Resistance) and high ripple current rating. A ceramic capacitor with X5R or X7R dielectric is recommended. The capacitor value should be at least 10uF, and it's recommended to use a capacitor with a voltage rating of 25V or higher.
  • Choose an output capacitor with low ESR and high ripple current rating. A ceramic capacitor with X5R or X7R dielectric is recommended. The capacitor value should be at least 10uF, and it's recommended to use a capacitor with a voltage rating of 6.3V or higher.
  • Ensure the input voltage is within the recommended range of 3.5V to 5.5V. Keep the junction temperature below 125°C, and avoid exceeding the maximum current rating of 1.5A. Also, ensure the device is operated within the recommended ambient temperature range of -40°C to 85°C.
  • The EN pin should be connected to a pull-up resistor (e.g., 10kΩ) to a stable voltage source (e.g., VCC). Add a capacitor (e.g., 100nF) in parallel to the pull-up resistor to filter out noise. Keep the EN pin trace short and away from noisy signals.
