A good PCB layout for the LM36011YKBR should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the thermal pad is connected to a solid ground plane. Keep the device away from high-current traces and avoid routing high-frequency signals near the device.
To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R ceramic). Also, ensure that the feedback resistors are of low tolerance (e.g., 1%) and that the feedback network is properly compensated.
The maximum input voltage that can be applied to the LM36011YKBR is 18V. Exceeding this voltage may damage the device. It's recommended to add input voltage protection, such as a voltage regulator or a transient voltage suppressor, to prevent overvoltage conditions.
To minimize EMI, ensure that the device is placed away from noise-sensitive components, and that the PCB layout is designed to minimize loop areas and reduce radiation. Use shielding, filtering, and grounding techniques to reduce EMI emissions. Additionally, consider using a spread-spectrum clock or a clock frequency that is not a harmonic of the switching frequency.
The recommended output capacitor type is a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10uF to 22uF. The output capacitor should be placed as close to the device as possible to minimize parasitic inductance and ensure stable output voltage regulation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM36011YKBR Overview

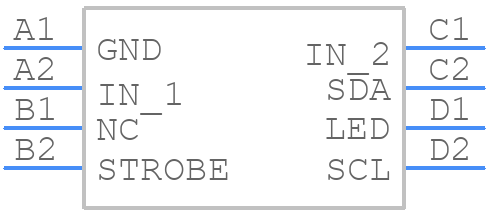

Use the download button to access the LM36011YKBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM360,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
