Please enter a minimum 3 letters or numbers
Technical Content
Part Image

LM360MX/NOPB - Texas Instruments

Description: High Speed Differential Comparator

Download LM360MX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

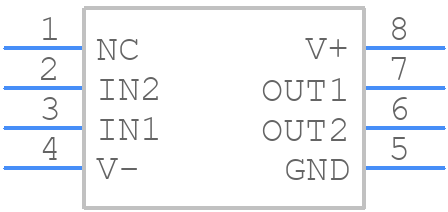

LM360MX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM360MX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LM360MX/NOPB - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LM360MX/NOPB Details

  • Manufacturer Part Number:

    LM360MX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    20 µA

  • Bias Current-Max (IIB) @25C:

    6 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -8 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    14 ns

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Comparator

  • Supply Current-Max:

    32 mA

  • Supply Voltage Limit-Max:

    8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LM360MX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM360MX involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF capacitance is recommended at the input and output.
  • The LM360MX can handle a maximum input voltage of 18V. However, it's recommended to operate the device within the recommended input voltage range of 6.5V to 16V for optimal performance and reliability.
  • The LM360MX is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the LM360MX, start by checking the input and output voltages, and the device's operating frequency. Verify that the input and output capacitors are of high quality and have low ESR. Also, check for any signs of overheating or physical damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM360MX/NOPB Overview

Use the download button to access the LM360MX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM360, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to LM360MX/NOPB

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

LM360MX/NOPB Alternates

Showing results

Image Part Number Model
Part Image LM360M National Semiconductor Corporation

Comparator, 1 Func, 5000uV Offset-Max, 14ns Response Time, BIPolar, PDSO8
Part Image LM360M Texas Instruments

Comparator, 1 Func, 2000uV Offset-Max, 14ns Response Time, BIPolar, PDSO8
