LM3633YFQR - Texas Instruments

Description: Complete Lighting Power Solution for Smartphone Handsets

Download LM3633YFQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

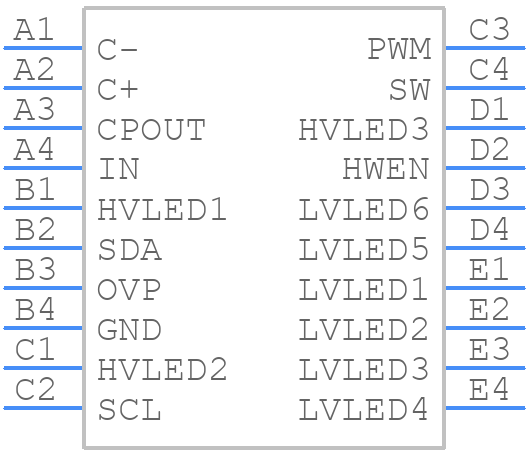

LM3633YFQR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3633YFQR - Texas Instruments PCB footprint - BGA - BGA - YFQ0020
click to zoom
3D Models
LM3633YFQR - Texas Instruments - 3D model - BGA - YFQ0020
click to zoom

LM3633YFQR Details

  • Manufacturer Part Number:

    LM3633YFQR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.01 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Segments:

    24

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.675 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.75 mm

  • fmax-Min:

    1.1 MHz

LM3633YFQR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM3633YFQR is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the device.
  • To ensure stability, make sure to follow the recommended layout and component placement guidelines, use a sufficient output capacitor (at least 10uF), and keep the input and output capacitors close to the device. Also, avoid using long traces and minimize the loop area of the feedback network.
  • The minimum input voltage required for the LM3633YFQR to operate is 2.5V, but it's recommended to keep it above 3V for optimal performance and to ensure the device can provide the required output voltage.
  • The LM3633YFQR is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to prevent overheating and ensure reliable operation.
  • The output voltage of the LM3633YFQR can be calculated using the formula: Vout = (1 + R1/R2) * 0.8V, where R1 and R2 are the feedback resistors. Make sure to choose the correct values for R1 and R2 to achieve the desired output voltage.
