A good PCB layout for the LM3668SD-4550/NOPB should include a solid ground plane, a separate power plane for the input voltage, and a heat sink attached to the thermal pad. The layout should also minimize the distance between the input and output capacitors and the IC.
To ensure the stability of the output voltage, make sure to use the recommended output capacitor value and type, and place it as close to the output pin as possible. Also, ensure that the input voltage is within the recommended range and that the input capacitor is properly sized.
The maximum ambient temperature for reliable operation of the LM3668SD-4550/NOPB is 85°C. However, the device can operate up to 125°C with derating. It's essential to ensure proper heat sinking and thermal management to prevent overheating.
While it's possible to use a different inductor value or type, it's not recommended. The LM3668SD-4550/NOPB is optimized for use with the recommended inductor value and type. Using a different inductor may affect the device's performance, efficiency, and stability.
To troubleshoot issues with the LM3668SD-4550/NOPB, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Check for signs of overheating, and ensure that the device is operated within the recommended specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3668SD-4550/NOPB Overview

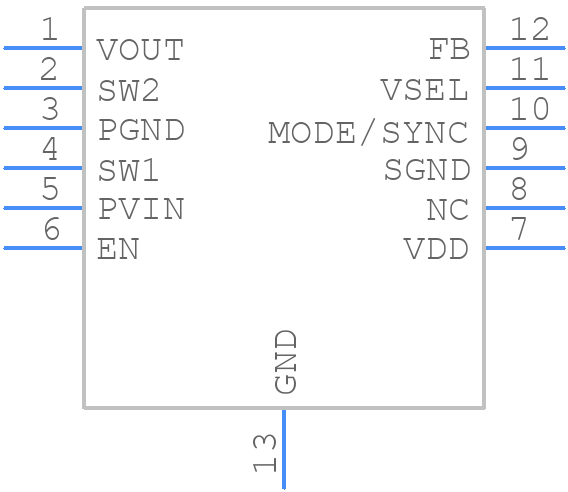

Use the download button to access the LM3668SD-4550/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM366,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
