Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, make sure to follow the recommended component values and PCB layout, and also ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device has a built-in soft-start feature that helps prevent oscillation during startup.
The LM3668SDX-2833/NOPB is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to consult the thermal design considerations in the datasheet and perform thermal analysis to ensure the device operates within its specified temperature range.
The LM3668SDX-2833/NOPB is an automotive-grade device, but it's essential to review the device's AEC-Q100 qualification and PPAP documentation to ensure it meets the specific requirements of your application. Additionally, consult with Texas Instruments' support team to discuss any specific requirements or concerns.
Start by reviewing the datasheet and application notes to ensure the device is properly configured and the PCB layout is correct. Use oscilloscopes and other measurement tools to monitor the device's input and output voltages, currents, and frequencies. Consult Texas Instruments' support resources, such as the E2E forum, and contact their support team for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3668SDX-2833/NOPB Overview

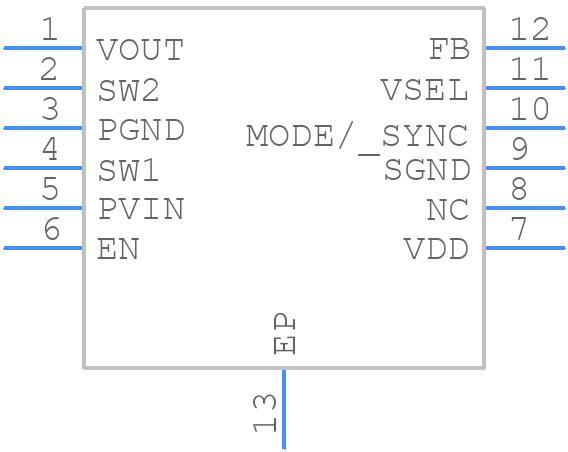

Use the download button to access the LM3668SDX-2833/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM366,
or try a keyword search, such as Switching Regulator or Controllers
