LM3916N-1/NOPB - Texas Instruments

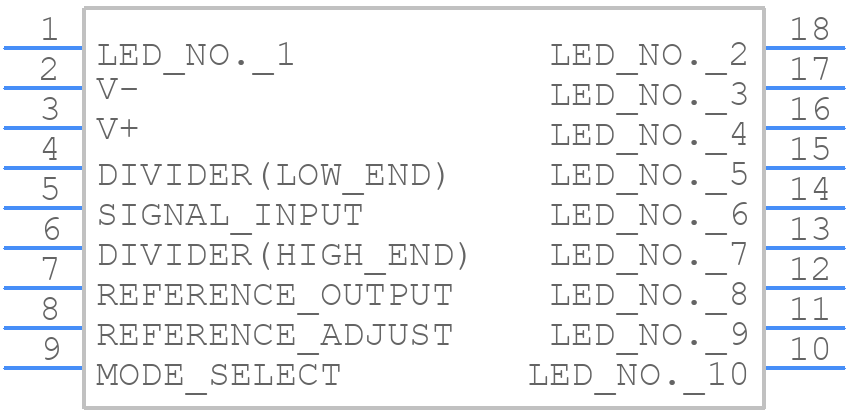

LM3916N-1/NOPB Details

• Manufacturer Part Number:

  LM3916N-1/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  DIP, DIP18,.3

• Pin Count:

  18

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  SELECTABLE DOT MODE

• Data Input Mode:

  PARALLEL

• Display Mode:

  BAR GRAPH

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  R-PDIP-T18

• Length:

  22.86 mm

• Moisture Sensitivity Level:

  1

• Multiplexed Display Capability:

  NO

• Number of Functions:

  1

• Number of Segments:

  10

• Number of Terminals:

  18

• Operating Temperature-Max:

  70 °C

• Output Characteristics:

  CONSTANT-CURRENT

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP18,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.32 mm

• Supply Voltage-Max:

  25 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  12 V

• Supply Voltage1-Max:

  25 V

• Supply Voltage1-Min:

  3 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
