The maximum voltage that can be applied to the input pins is the supply voltage (VCC) + 0.3V, but not exceeding 36V.
To ensure a stable output, add a small capacitor (e.g., 10nF) between the output and ground, and/or use a pull-up resistor (e.g., 1kΩ) between the output and VCC.
The minimum input voltage differential required for a valid comparison is typically around 1-2mV, but this can vary depending on the specific application and noise conditions.
No, the LM393DG is a comparator, not an amplifier or buffer. It is designed to provide a digital output based on the comparison of two input voltages, not to amplify or buffer signals.
When the input voltages are very close or equal, the comparator output may oscillate or be unstable. In such cases, consider adding hysteresis (e.g., using positive feedback) or using a Schmitt trigger configuration to improve stability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM393DG Overview

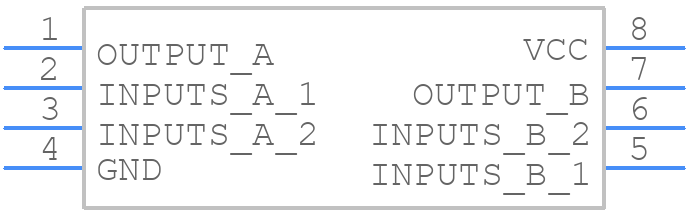

Use the download button to access the LM393DG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LM393,
or try a keyword search, such as Comparators
