The maximum voltage that can be applied to the input pins is the supply voltage (VCC) + 0.3V. Exceeding this voltage can cause damage to the device.
To prevent oscillation, add hysteresis to the comparator by connecting a small resistor (e.g., 1kΩ) between the output and the non-inverting input. This creates a small positive feedback loop that helps to stabilize the output.
The minimum input voltage difference required for a valid output transition is typically around 1-2 mV, but this can vary depending on the specific application and noise conditions. It's recommended to ensure a minimum of 5-10 mV difference for reliable operation.
No, the LM393DR2 is a comparator, not an amplifier. It's designed to provide a digital output based on the comparison of the input voltages, not to amplify a signal. Using it as an amplifier can lead to unstable operation and incorrect results.
When the input voltage is equal to the reference voltage, the comparator output may be undefined or oscillate. To handle this case, add a small offset voltage (e.g., 1-5 mV) to the reference voltage to ensure a clear output state.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM393DR2 Overview

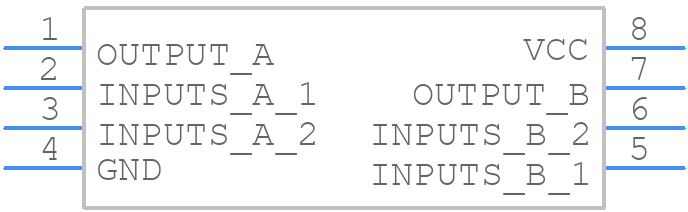

Use the download button to access the LM393DR2 schematic symbol, PCB footprint, and 3D model.
