LM3S5951-IBZ80-C3 - Texas Instruments

LM3S5951-IBZ80-C3 Details

• Manufacturer Part Number:

  LM3S5951-IBZ80-C3

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

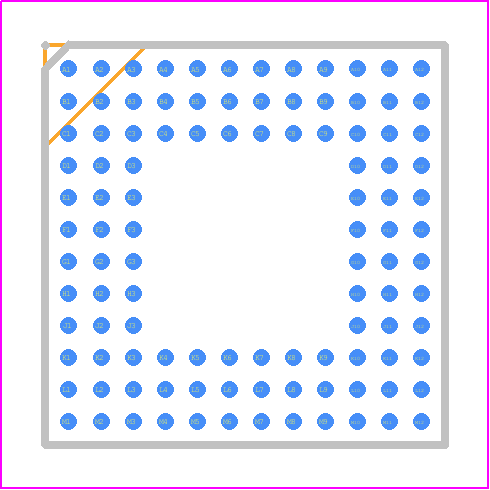

• Part Package Code:

  BGA

• Package Description:

  MO-219F, NFBGA-108

• Pin Count:

  108

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Has ADC:

  YES

• Bit Size:

  32

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-PBGA-B108

• JESD-609 Code:

  e1

• Length:

  10 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  67

• Number of Terminals:

  108

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Qualification Status:

  Not Qualified

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.5 mm

• Speed:

  80 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN SILVER COPPER

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  10 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
