LM3S9B92-IBZ80-C1 - Texas Instruments

Description: ARM Microcontrollers - MCU Stellaris Micro controller

Download LM3S9B92-IBZ80-C1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LM3S9B92-IBZ80-C1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

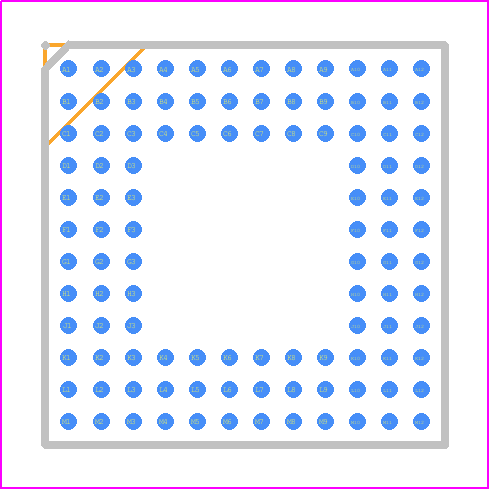

LM3S9B92-IBZ80-C1 - Texas Instruments PCB footprint - BGA - BGA - 108-Ball BGA
click to zoom
3D Models
LM3S9B92-IBZ80-C1 - Texas Instruments - 3D model - BGA - 108-Ball BGA
click to zoom

LM3S9B92-IBZ80-C1 Details

  • Manufacturer Part Number:

    LM3S9B92-IBZ80-C1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    ROHS COMPLIANT, MO-219F, BGA-108

  • Pin Count:

    108

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PBGA-B108

  • Length:

    10 mm

  • Number of I/O Lines:

    65

  • Number of Terminals:

    108

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA108,12X12,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    98304

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.5 mm

  • Speed:

    80 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

LM3S9B92-IBZ80-C1 Frequently Asked Questions (FAQs)

  • The LM3S9B92-IBZ80-C1 can operate from -40°C to 85°C (industrial temperature range) and from -40°C to 105°C (extended temperature range) with some limitations.
  • The LM3S9B92-IBZ80-C1 has a flexible clock system that can be configured using the Clock Control Module (CCM). The available clock sources include the internal oscillator, external crystal oscillator, and external clock input. Refer to the datasheet and the StellarisWare library for configuration examples.
  • The GPIO pins of the LM3S9B92-IBZ80-C1 can source up to 4 mA and sink up to 8 mA. However, it's recommended to limit the current to 2 mA for sourcing and 4 mA for sinking to ensure reliable operation.
  • The LM3S9B92-IBZ80-C1 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Module (WTM). The watchdog timer can be used to reset the microcontroller in case of a software fault or hang.
  • The LM3S9B92-IBZ80-C1 has several power modes, including Active, Sleep, Deep Sleep, and Hibernate. These modes can be used to reduce power consumption by shutting down unused peripherals and clock domains. Refer to the datasheet and the StellarisWare library for examples on how to use these power modes.
