The recommended crystal oscillator frequency for the LM3S9B92-IQC80-C1T is 12 MHz, as specified in the datasheet. However, it's also possible to use other frequencies such as 16 MHz or 20 MHz, but this may require adjustments to the PLL settings and clock configuration.
The GPIO pins on the LM3S9B92-IQC80-C1T can be configured for analog or digital functionality using the Pin Control Register (PCR) and the Analog Mode Register (AMR). The PCR sets the pin's function, while the AMR sets the pin's analog or digital mode. Consult the datasheet and the StellarisWare library documentation for more information.
The maximum current that can be sourced or sunk by the GPIO pins on the LM3S9B92-IQC80-C1T is 4 mA per pin, as specified in the datasheet. However, it's recommended to limit the current to 2 mA per pin to ensure reliable operation and to prevent overheating.
The internal flash memory on the LM3S9B92-IQC80-C1T can be used for data storage using the Flash Memory Controller (FMC). The FMC provides a set of registers and commands to read, write, and erase the flash memory. Consult the datasheet and the StellarisWare library documentation for more information on how to use the FMC.
The power consumption of the LM3S9B92-IQC80-C1T varies depending on the operating mode. In active mode, the power consumption is around 250 μA/MHz. In sleep mode, the power consumption is around 10 μA. In deep sleep mode, the power consumption is around 1 μA. Consult the datasheet for more information on power consumption in different operating modes.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM3S9B92-IQC80-C1T Overview

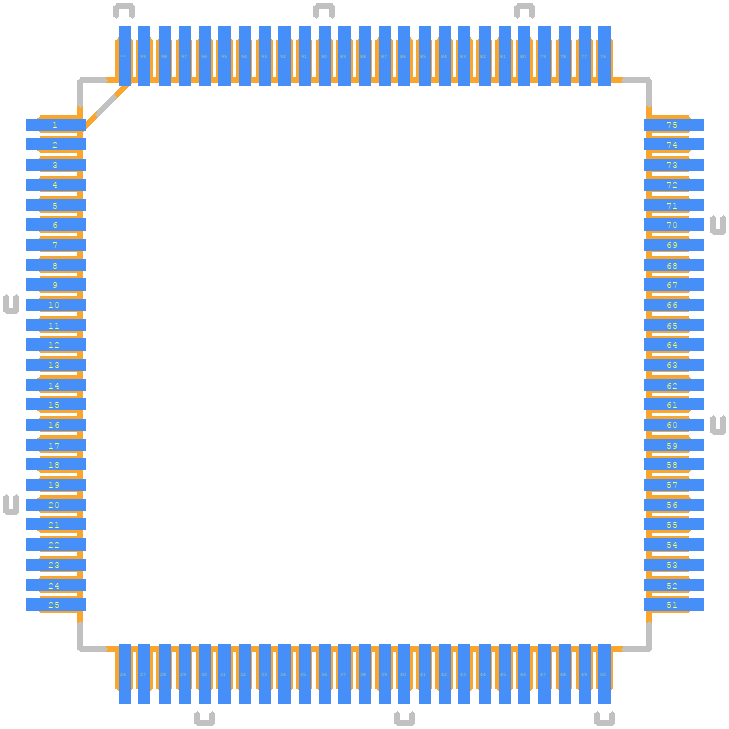

Use the download button to access the LM3S9B92-IQC80-C1T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM3S9,
or try a keyword search, such as Microcontrollers
