A good PCB layout for the LM48310SD/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signal, a dedicated layer for the digital signal, and a solid ground plane on the bottom layer.
To ensure the LM48310SD/NOPB is properly biased, make sure to connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage to the device is within the recommended operating range of 2.7V to 5.5V.
The maximum power dissipation of the LM48310SD/NOPB is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and ensure good airflow around the device. Additionally, ensure that the device is operated within the recommended operating temperature range of -40°C to 85°C.
To configure the LM48310SD/NOPB for stereo audio applications, connect the left and right channel audio signals to the corresponding input pins (INL and INR), and connect the output pins (OUTL and OUTR) to the corresponding audio outputs. Ensure that the device is properly biased and that the input signals are within the recommended operating range.
The recommended input impedance for the LM48310SD/NOPB is 10kΩ to 100kΩ. A higher input impedance can lead to increased noise and distortion, while a lower input impedance can lead to reduced gain and increased power consumption. Ensure that the input impedance is within the recommended range for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM48310SD/NOPB Overview

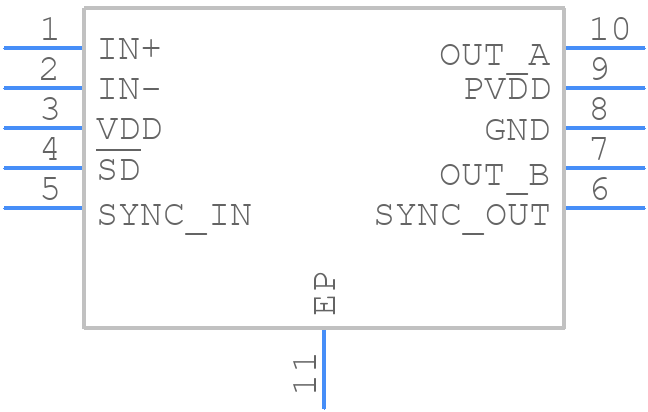

Use the download button to access the LM48310SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM483,
or try a keyword search, such as Audio/Video Amplifiers
