LM4838MTEX/NOPB - Texas Instruments

Description: Stereo 2W Audio Power Amplifiers with DC Volume Control and Selectable Gain

Download LM4838MTEX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

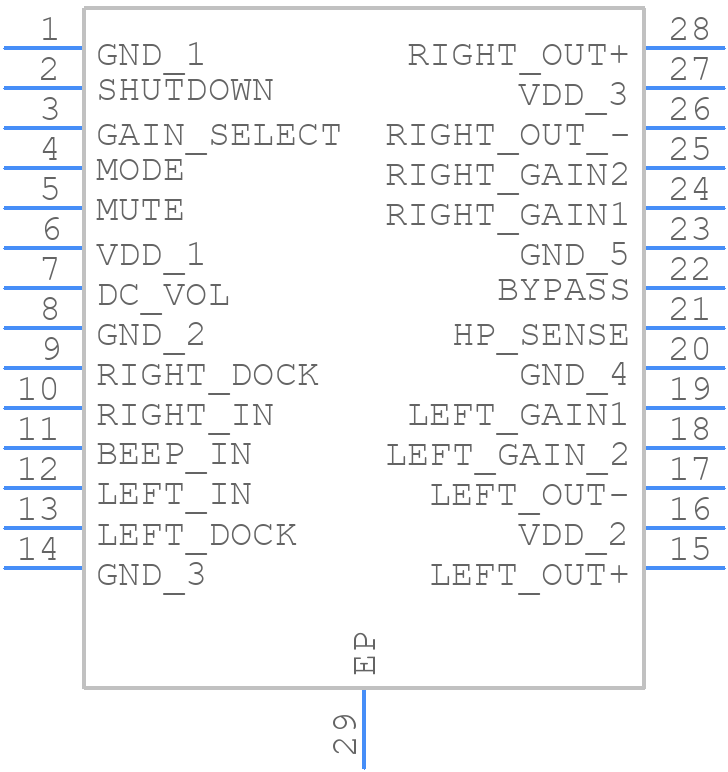

Symbol
LM4838MTEX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM4838MTEX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0028A
click to zoom
3D Models
LM4838MTEX/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP0028A
click to zoom

LM4838MTEX/NOPB Details

  • Manufacturer Part Number:

    LM4838MTEX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Channel Separation:

    65 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Noise Figure-Nom:

    93 dB

  • Number of Bands:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2.5 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM4838MTEX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM4838MTEX/NOPB involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the device. A minimum output capacitance of 10uF is recommended.
  • The maximum input voltage that the LM4838MTEX/NOPB can handle is 12V. Exceeding this voltage may damage the device.
  • The LM4838MTEX/NOPB is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. It's recommended to derate the device's performance and consider using a heat sink if operating in high-temperature environments.
  • To troubleshoot issues with the LM4838MTEX/NOPB, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for more troubleshooting tips.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM4838MTEX/NOPB Overview

Use the download button to access the LM4838MTEX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM483, or try a keyword search, such as Audio Control ICs
