LM4865M/NOPB - Texas Instruments

Description: Texas Instruments LM4865M/NOPB 2-Channel Audio Amplifier IC, Class-AB, 8-Pin SOIC

Download LM4865M/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

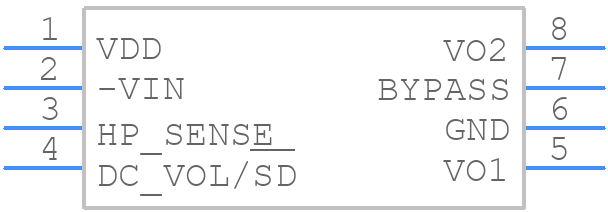

Symbol
LM4865M/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM4865M/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOIC
click to zoom
3D Models
LM4865M/NOPB - Texas Instruments - 3D model - Small Outline Packages - 8-SOIC
click to zoom

LM4865M/NOPB Details

  • Manufacturer Part Number:

    LM4865M/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • Harmonic Distortion:

    1%

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.902 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    1 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.753 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LM4865M/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM4865M involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The gain resistors (Rf and Ri) should be chosen based on the desired gain and input impedance. A higher gain requires smaller resistors, while a higher input impedance requires larger resistors. The datasheet provides a gain resistor calculator to help with the selection.
  • The maximum power dissipation of the LM4865M is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a power dissipation calculator to help determine the maximum power dissipation for a given application.
  • Yes, the LM4865M can be used in a single-supply configuration. However, the input common-mode range is limited to VCC-1.5V to VCC, and the output voltage swing is reduced. A voltage divider or a virtual ground circuit may be required to bias the input signals.
  • The LM4865M is a high-gain amplifier and can be susceptible to noise and EMI. To filter out noise and EMI, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure or a metal can package.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM4865M/NOPB Overview

Use the download button to access the LM4865M/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM486, or try a keyword search, such as Audio Control ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
