Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general audio PCB layout best practices, such as separating analog and digital grounds, using a star-ground configuration, and minimizing trace lengths and loops.
Proper biasing is critical for optimal performance. Ensure that the voltage supply is within the recommended range (2.7V to 5.5V), and that the input and output capacitors are properly sized and placed. Also, ensure that the gain-setting resistors are correctly sized and matched.
The maximum power dissipation of the LM4865MMX/NOPB is 1.4W. To ensure it doesn't overheat, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and keep the ambient temperature within the recommended range (−40°C to 85°C).
Use a combination of passive and active filtering techniques, such as RC filters, ferrite beads, and shielding. Also, ensure that the power supply is well-regulated and decoupled, and that the audio signal paths are properly shielded and routed.
Yes, the LM4865MMX/NOPB can be used in a stereo audio application. To configure it, use two devices, one for each channel, and ensure that the gain-setting resistors and input/output capacitors are matched and properly sized for each channel.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4865MMX/NOPB Overview

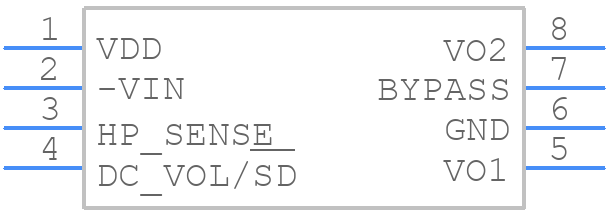

Use the download button to access the LM4865MMX/NOPB schematic symbol, PCB footprint, and 3D model.
