A good PCB layout for the LM4875MM/NOPB involves keeping the input and output traces separate, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a star-ground configuration and to avoid routing high-frequency signals near the device.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are properly selected and placed, and that the device is properly decoupled. If oscillations occur, try adding a small resistor in series with the output capacitor or adjusting the gain-setting resistors.
The maximum power dissipation of the LM4875MM/NOPB is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance. The maximum power dissipation is typically around 1.4W.
Yes, the LM4875MM/NOPB can be used in a stereo audio application. To configure it, you'll need to use two devices, one for each channel. Connect the inputs of each device to the corresponding audio signal, and the outputs to the corresponding speaker or load. Make sure to use a common ground and decoupling capacitors for both devices.
The recommended input and output coupling capacitor value for the LM4875MM/NOPB is typically in the range of 1uF to 10uF, depending on the specific application and frequency response requirements. A higher value capacitor will provide a lower cutoff frequency, while a lower value capacitor will provide a higher cutoff frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4875MM/NOPB Overview

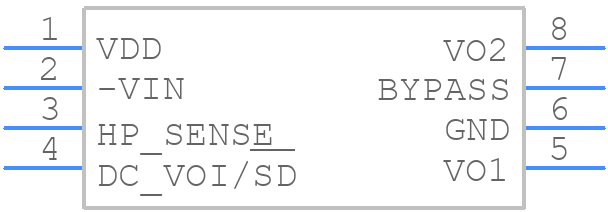

Use the download button to access the LM4875MM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM487,
or try a keyword search, such as Audio Control ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
