LM49200TL - Texas Instruments

Description: Amplifier

Download LM49200TL Model

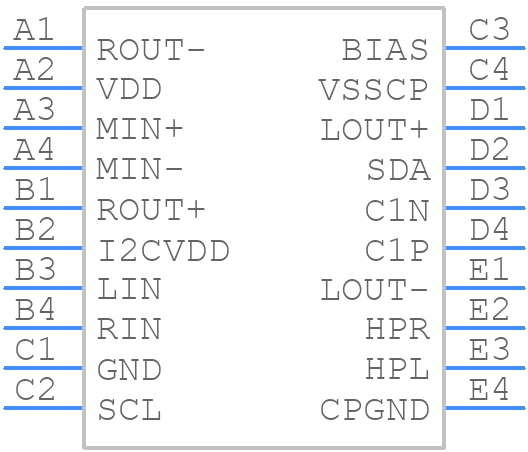

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM49200TL - Texas Instruments PCB footprint - Other - Other - BGA20C50P4X5_251X202X67
click to zoom

LM49200TL Details

  • Manufacturer Part Number:

    LM49200TL

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    GREEN, MICROSMD PACKAGE-20

  • Pin Count:

    20

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Channel Separation:

    80 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-XBGA-B20

  • Length:

    2.517 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.675 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.045 mm

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LM49200TL Overview

Use the download button to access the LM49200TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LM492, or try a keyword search, such as Audio Control ICs

Parts related to LM49200TL

Showing 0 results

LM49200TL Alternates

Showing results

Image Part Number Model
Part Image LM49200TL/NOPB Texas Instruments

500-mW, stereo, analog input Class-AB audio amplifier & I2C control 20-DSBGA -40 to 85

Part Image LM49200TLX/NOPB Texas Instruments

500-mW, stereo, analog input Class-AB audio amplifier & I2C control 20-DSBGA -40 to 85

Part Image LM49200TLX Texas Instruments

2 CHANNEL(S), VOLUME CONTROL CIRCUIT, BGA20, MICROSMD PACKAGE-20
