Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio circuit board design, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and widths.
Proper biasing is critical for the LM4931ITL/NOPB. Ensure that the voltage supply is within the recommended range (2.7V to 5.5V), and that the input and output capacitors are properly sized and placed. Additionally, ensure that the gain-setting resistors are correctly sized and matched to achieve the desired gain.
The maximum power dissipation of the LM4931ITL/NOPB is 250mW. To ensure it doesn't overheat, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and keep the ambient temperature within the recommended range (−40°C to 85°C).
Use a combination of passive and active filtering techniques, such as RC filters, ferrite beads, and shielding, to minimize noise and EMI. Additionally, ensure that the LM4931ITL/NOPB is properly bypassed and decoupled, and that the power supply is clean and well-regulated.
Yes, the LM4931ITL/NOPB can be used in a stereo audio application. To configure it, use two separate devices, one for each channel, and ensure that the gain-setting resistors and input/output capacitors are properly matched and sized for each channel.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4931ITL/NOPB Overview

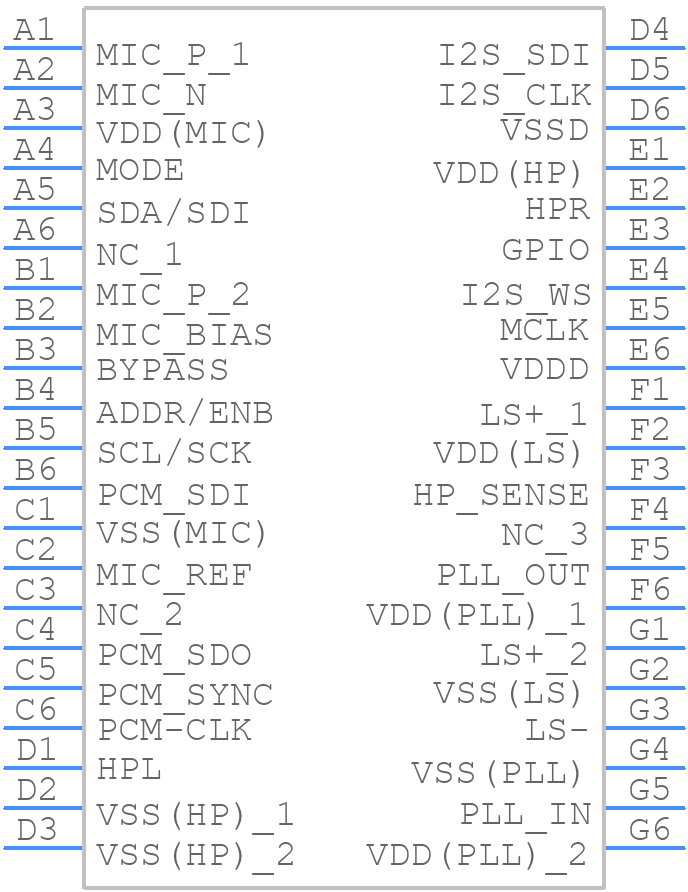

Use the download button to access the LM4931ITL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM493,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
