LM49352RLX/NOPB - Texas Instruments

Description: Mono Class D Audio Codec Subsytem w/ Gnd Referenced Headphone Amps, Earpiece Driver, & Audio DSP

Download LM49352RLX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

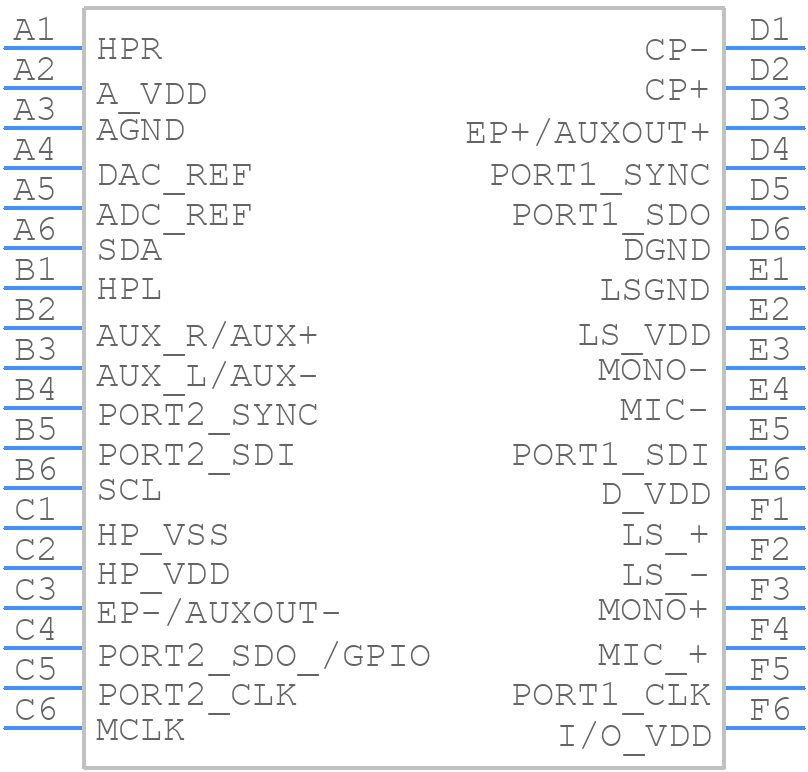

LM49352RLX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM49352RLX/NOPB - Texas Instruments PCB footprint - BGA - BGA - LM49352RLX/NOPB*1
click to zoom
3D Models
LM49352RLX/NOPB - Texas Instruments - 3D model - BGA - LM49352RLX/NOPB*1
click to zoom

LM49352RLX/NOPB Details

  • Manufacturer Part Number:

    LM49352RLX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Filter:

    NO

  • Input Type:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XBGA-B36

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.725 mm

  • Supply Current-Max:

    1.5 mA

  • Surface Mount:

    YES

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

LM49352RLX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the codec near the audio connectors to minimize noise. Decoupling capacitors should be placed close to the power pins.
  • To minimize power consumption, use the lowest possible clock frequency, disable unused features, and use the power-down mode when not in use. Additionally, use a low-dropout regulator to minimize voltage drops.
  • A crystal oscillator or a high-quality clock source with low jitter is recommended. The clock frequency should be between 12.288 MHz and 24.576 MHz for optimal performance.
  • Use a shielded enclosure, keep the audio cables away from the digital lines, and use a common-mode choke to reduce electromagnetic interference (EMI). Additionally, follow good PCB design practices to minimize radiation.
  • The maximum allowed capacitance for the headphone output is 10 μF. Exceeding this value may cause instability or oscillation in the output stage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM49352RLX/NOPB Overview

Use the download button to access the LM49352RLX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM493, or try a keyword search, such as Codecs
