Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure optimal thermal performance.
The choice of output filter components (e.g., L-C filters) depends on the specific application requirements, such as frequency response, impedance, and power handling. TI provides guidelines for selecting these components in the datasheet, including equations and graphs to help with the design process.
The maximum power dissipation of the LM4947TL/NOPB is dependent on the ambient temperature, package type, and thermal management. According to the datasheet, the maximum power dissipation is 2.5 W for the TL package. However, this value can be derated based on the ambient temperature and thermal resistance of the package.
Yes, the LM4947TL/NOPB can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage design, including the selection of output transistors, resistors, and capacitors. TI provides application notes and design examples for bridged configurations in the datasheet and online resources.
The LM4947TL/NOPB has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, additional protection measures may be necessary depending on the specific application requirements. This can include the use of external voltage regulators, voltage supervisors, or protection ICs to ensure the device operates within its recommended voltage range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4947TL/NOPB Overview

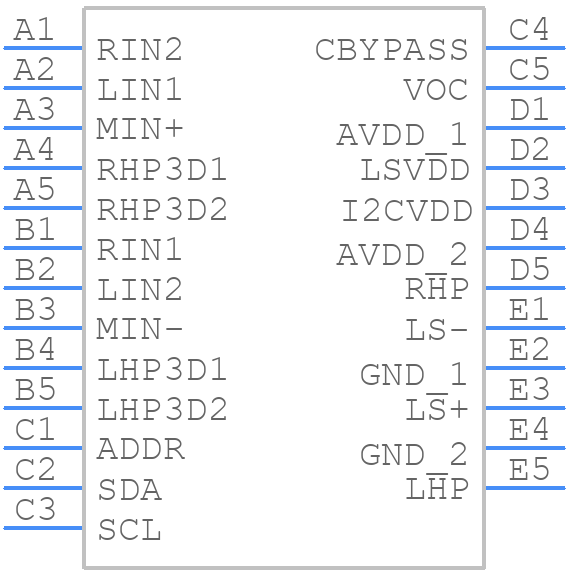

Use the download button to access the LM4947TL/NOPB schematic symbol, PCB footprint, and 3D model.
