Texas Instruments provides a recommended PCB layout in the application note SLVAU65, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. TI recommends using X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage and a capacitance value of 10uF to 22uF for the input capacitor, and 10uF to 47uF for the output capacitor.
The LM4952TS is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal management system used. TI recommends following the thermal design guidelines in the datasheet to ensure reliable operation within the specified temperature range.
To ensure EMC compliance, follow the guidelines in the TI application note SLVAU65, which provides recommendations for PCB layout, component selection, and shielding to minimize EMI. Additionally, TI recommends using a common-mode choke and a ferrite bead in the input and output lines to reduce EMI emissions.
The recommended input voltage range for the LM4952TS is 4.5V to 18V, but the device can operate from 3.6V to 20V. However, operation outside the recommended range may affect the device's performance, efficiency, and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4952TS Overview

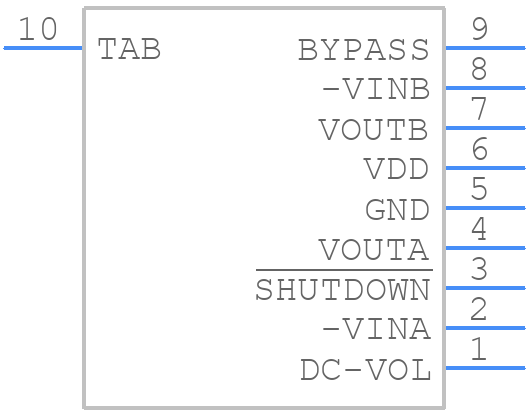

Use the download button to access the LM4952TS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM495,
or try a keyword search, such as Audio Control ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
