Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Additionally, it's recommended to place the input and output capacitors close to the device and to use short, wide traces for the power supply lines.
To ensure stability, make sure to follow the recommended component values and PCB layout. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. Also, avoid using long, narrow traces for the feedback loop and keep the gain-setting resistors close to the device.
The maximum power dissipation of the LM4970SD is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the ambient temperature and the thermal resistance of the package.
The LM4970SD is rated for operation up to 85°C ambient temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the power dissipation and ensure proper heat sinking to prevent overheating.
To protect the LM4970SD from ESD and overvoltage, it's recommended to use TVS diodes or ESD protection devices on the input and output pins. Additionally, ensure that the device is operated within the recommended voltage range and that the input and output capacitors are rated for the maximum voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4970SD/NOPB Overview

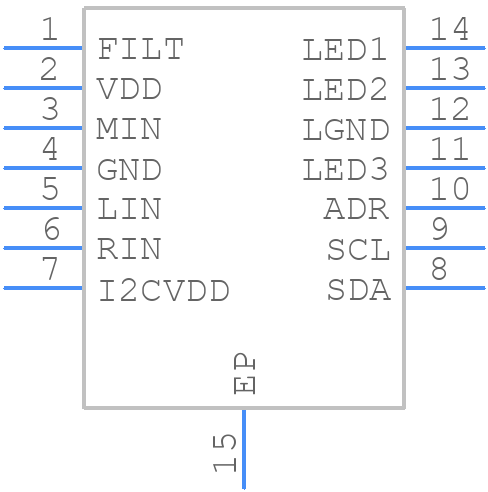

Use the download button to access the LM4970SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM497,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
