Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
To ensure reliable start-up and shutdown, it is recommended to use a soft-start circuit to limit the inrush current and to add a delay between power-on and enable signals. Additionally, a voltage supervisor can be used to monitor the input voltage and ensure that the device is enabled only when the input voltage is within the recommended range.
The critical components that affect the noise performance of the LM5000-3MTCX are the input and output capacitors, the inductor, and the PCB layout. Using high-quality, low-ESR capacitors and a shielded inductor can help minimize noise. Additionally, a well-designed PCB layout with proper grounding and shielding can also help reduce noise.
The compensation network can be optimized by using the Texas Instruments' WEBENCH Power Designer tool, which provides a graphical interface to design and optimize the compensation network. Alternatively, the compensation network can be optimized manually by following the guidelines provided in the datasheet and application notes.
In high-temperature applications, it is essential to ensure that the LM5000-3MTCX is operated within its recommended temperature range. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. Additionally, the device's power dissipation should be derated according to the temperature derating curve provided in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5000-3MTCX Overview

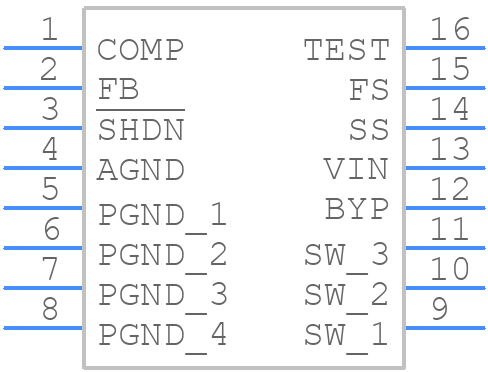

Use the download button to access the LM5000-3MTCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM500,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
