- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM5001MA
- Part Number LM5001MA
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X175-8N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM5001MA Details
-
Manufacturer Part Number:
LM5001MA
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOIC-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
LM5001MA Frequently Asked Questions (FAQs)
-
A good PCB layout for the LM5001MA involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane for the device.
-
The choice of input and output capacitors for the LM5001MA depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response.
-
The LM5001MA is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation based on the ambient temperature to ensure reliable operation.
-
Yes, the LM5001MA is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability systems.
-
Proper thermal management for the LM5001MA involves ensuring good airflow around the device, using a heat sink if necessary, and keeping the device's junction temperature below the maximum rating. The device's thermal resistance and power dissipation should be considered when designing the thermal management system.
Trust Checks
System Verified
LM5001MA Overview

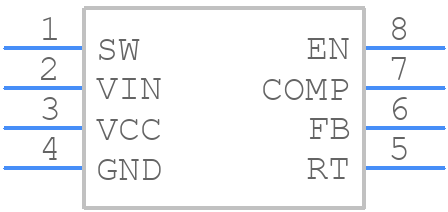

Use the download button to access the LM5001MA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM500,
or try a keyword search, such as Switching Regulator or Controllers
