LM5002MA/NOPB - Texas Instruments

Description: 3.1-75V Wide Vin, 0.5A Current Mode Non-Synchronous Switch Mode Regulator

Download LM5002MA/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

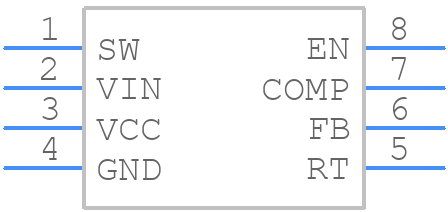

LM5002MA/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM5002MA/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A SOIC
click to zoom
3D Models
LM5002MA/NOPB - Texas Instruments - 3D model - Small Outline Packages - D0008A SOIC
click to zoom

LM5002MA/NOPB Details

  • Manufacturer Part Number:

    LM5002MA/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    3.1 V

  • Input Voltage-Nom:

    10 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    75 V

  • Output Voltage-Min:

    1.26 V

  • Output Voltage-Nom:

    6.85 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1500 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LM5002MA/NOPB Frequently Asked Questions (FAQs)

  • The LM5002MA/NOPB can handle input voltages up to 60V, but it's recommended to operate within the specified input voltage range of 12V to 42V for optimal performance.
  • To ensure stability, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the feedback resistors R1 and R2.
  • The LM5002MA/NOPB can provide up to 2A of output current, but it's recommended to operate within the specified output current range of 0.5A to 1.5A for optimal performance and thermal management.
  • The LM5002MA/NOPB has built-in overcurrent protection and thermal shutdown features. However, it's still essential to follow proper thermal design and layout guidelines, and to add external protection components such as fuses or PTC resistors if necessary.
  • The LM5002MA/NOPB is rated for operation up to 125°C, but it's essential to follow proper thermal design and layout guidelines to ensure reliable operation. Additionally, the device's performance and reliability may degrade at high temperatures, so it's recommended to operate within the specified temperature range of -40°C to 125°C.
