SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
500 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM5005MH/NOPB Frequently Asked Questions (FAQs)
The LM5005MH/NOPB can handle input voltages up to 75V, but it's recommended to operate within the specified input voltage range of 40V to 60V for optimal performance.
To ensure stability, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated and free of noise.
The LM5005MH/NOPB can provide up to 5A of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions. It's essential to check the thermal derating curves and ensure proper heat sinking to maintain reliable operation.
The LM5005MH/NOPB has built-in overcurrent protection and thermal shutdown features. However, it's still important to add external protection components, such as fuses or current-sensing resistors, to prevent damage from excessive current or voltage. Proper heat sinking and thermal management are also crucial to prevent overheating.
Yes, the LM5005MH/NOPB is suitable for high-reliability and automotive applications due to its robust design, high-temperature rating, and compliance with relevant industry standards. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5005MH/NOPB Overview

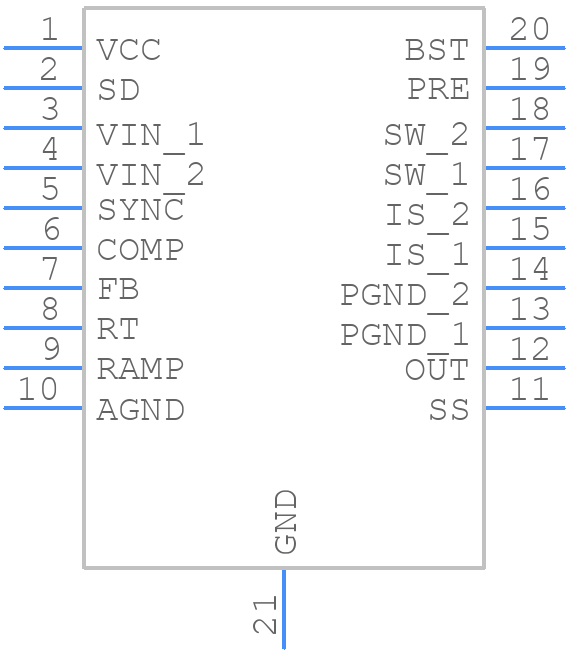

Use the download button to access the LM5005MH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM500,
or try a keyword search, such as Switching Regulator or Controllers
