The LM5007MMX/NOPB can handle input voltages up to 60V, but it's recommended to operate within the specified input voltage range of 12V to 42V for optimal performance.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines provided in the datasheet. Additionally, use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) to minimize output voltage ripple.
The LM5007MMX/NOPB can provide up to 500mA of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet for specific current ratings and thermal derating curves.
The LM5007MMX/NOPB has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. However, it's still important to add external protection components, such as fuses or PTC resistors, to prevent damage from excessive current or voltage surges.
The LM5007MMX/NOPB is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Be sure to check the datasheet for thermal derating curves and consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5007MMX/NOPB Overview

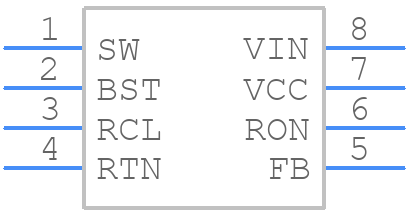

Use the download button to access the LM5007MMX/NOPB schematic symbol, PCB footprint, and 3D model.
