The LM5007SD/NOPB can handle input voltages up to 75V, but it's recommended to operate within the specified input voltage range of 6V to 60V for optimal performance.
To ensure stability, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the feedback resistors R1 and R2.
The LM5007SD/NOPB can provide up to 500mA of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions. It's essential to check the device's thermal performance and adjust the output current accordingly.
The LM5007SD/NOPB has built-in overcurrent protection and thermal shutdown features. However, it's still important to add external protection components, such as fuses or current-limiting resistors, to prevent damage from excessive current or voltage. Additionally, ensure proper thermal design and heat sinking to prevent overheating.
The LM5007SD/NOPB is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's essential to consider the device's thermal performance and adjust the design accordingly. In high-temperature environments, consider using a heat sink or thermal interface material to ensure reliable operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5007SD/NOPB Overview

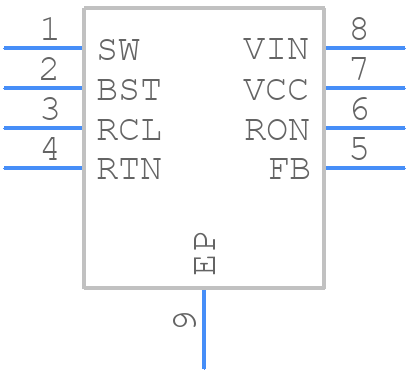

Use the download button to access the LM5007SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM500,
or try a keyword search, such as Switching Regulator or Controllers
