LM5009ASD - Texas Instruments

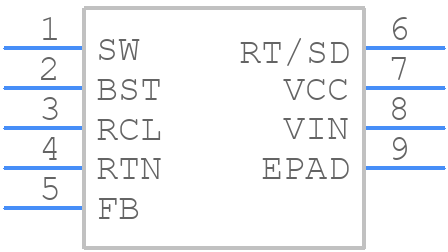

LM5009ASD Details

• Manufacturer Part Number:

  LM5009ASD

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  4 X 4 MM, LLP-8

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES IN ADJUSTABLE MODE FROM 2.5V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Technique:

  CONSTANT ON TIME

• Input Voltage-Max:

  95 V

• Input Voltage-Min:

  6 V

• Input Voltage-Nom:

  48 V

• JESD-30 Code:

  S-XDSO-N8

• Length:

  4 mm

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.36 A

• Output Voltage-Min:

  2.5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VSON

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, VERY THIN PROFILE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Supply Current-Max (Isup):

  0.75 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Width:

  4 mm
