Texas Instruments provides a recommended PCB layout in the LM5010 evaluation module documentation, which includes guidelines for component placement, thermal management, and routing. Following this layout can help ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, current, and frequency. A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value that ensures the desired ripple voltage. TI provides a capacitor selection guide in the LM5010 datasheet and application notes.
While the LM5010 datasheet specifies an operating junction temperature range of -40°C to 150°C, the maximum ambient temperature for reliable operation depends on the specific application and thermal management. As a general guideline, TI recommends keeping the ambient temperature below 85°C for most applications.
To ensure EMC compliance, follow TI's guidelines for PCB layout, component selection, and shielding. Additionally, consider using a metal shield or a shielded inductor, and ensure that the LM5010 is placed at least 1 mm away from the PCB edge. TI provides EMC compliance guidelines in the LM5010 datasheet and application notes.
The output capacitor type and value depend on the output voltage, current, and ripple requirements. TI recommends using a low-ESR ceramic or polymer capacitor with a value between 10 μF to 100 μF, depending on the specific application. A general rule of thumb is to choose a capacitor with a capacitance value that ensures the desired output voltage ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5010AMHX Overview

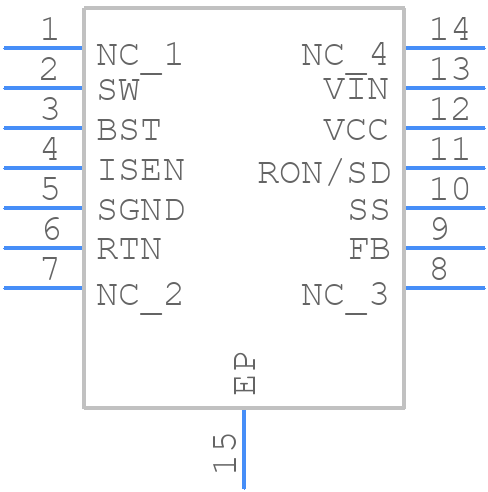

Use the download button to access the LM5010AMHX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM501,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
