A good PCB layout for the LM5010AQ0MH/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor has a low ESR, the input capacitor is properly sized, and the feedback network is properly compensated. Additionally, ensure that the device is operated within its recommended operating conditions and that the input voltage is within the specified range.
The maximum ambient temperature range for the LM5010AQ0MH/NOPB is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
Yes, the LM5010AQ0MH/NOPB is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the requirements of the automotive and industrial markets.
To troubleshoot issues with the LM5010AQ0MH/NOPB, start by verifying that the device is properly powered and that the input voltage is within the specified range. Check the output voltage and current, and ensure that the device is not overheating. Use an oscilloscope to check for oscillations or other anomalies in the output voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5010AQ0MH/NOPB Overview

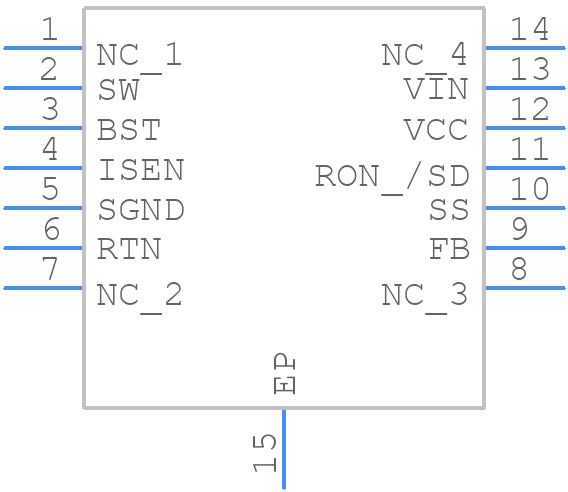

Use the download button to access the LM5010AQ0MH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM501,
or try a keyword search, such as Switching Regulator or Controllers
