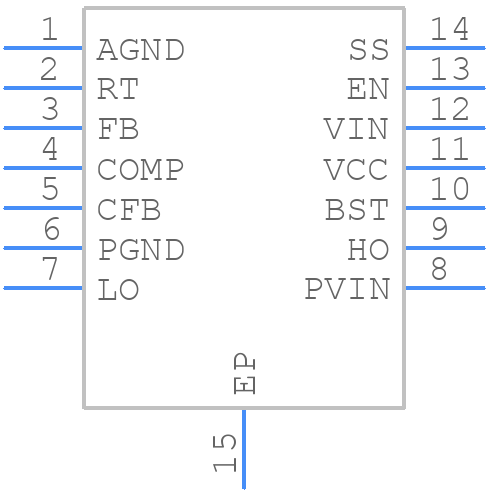

LM5015MH - Texas Instruments

LM5015MH Details

• Manufacturer Part Number:

  LM5015MH

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Package Description:

  TSSOP-14

• Pin Count:

  14

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  75 V

• Input Voltage-Min:

  4.25 V

• Input Voltage-Nom:

  48 V

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e0

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.4 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  445 kHz

• Technology:

  BICMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
