Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
To ensure stability, follow the datasheet's guidelines for component selection, especially the output capacitor and feedback resistors. Additionally, make sure the input and output voltages are within the recommended range, and the device is operated within its specified temperature range.
While the datasheet specifies a maximum input voltage of 5.5V, it's recommended to derate the input voltage to 5V or less to ensure reliable operation and prevent damage to the device.
The LM5021MM-1 is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If your application requires operation above 125°C, consider using a different device or implementing thermal management techniques to keep the device within its specified temperature range.
Start by verifying the input voltage, output voltage, and component values against the datasheet's recommendations. Use an oscilloscope to check for oscillations or noise on the output. Check for thermal issues by measuring the device's temperature and ensuring proper heat sinking. If issues persist, consult the datasheet's troubleshooting section or contact Texas Instruments' support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5021MM-1 Overview

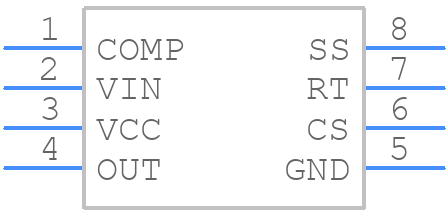

Use the download button to access the LM5021MM-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM502,
or try a keyword search, such as Switching Regulator or Controllers
