A good PCB layout for the LM5021MM-2/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with additional capacitors if necessary.
The LM5021MM-2/NOPB has an operating ambient temperature range of -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate within a range of -20°C to 85°C for optimal performance.
Yes, the LM5021MM-2/NOPB is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's still important to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the LM5021MM-2/NOPB, start by checking the input and output voltages, as well as the device's operating temperature. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the device is properly soldered and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5021MM-2/NOPB Overview

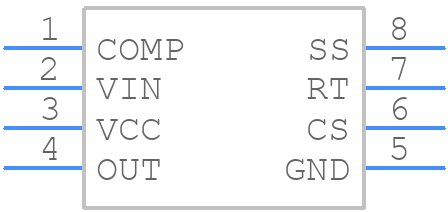

Use the download button to access the LM5021MM-2/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM502,
or try a keyword search, such as Switching Regulator or Controllers
