A good PCB layout for the LM5021NA-1/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with capacitors to reduce noise and oscillations.
The LM5021NA-1/NOPB has an operating ambient temperature range of -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's recommended to keep the ambient temperature below 85°C for optimal performance.
Yes, the LM5021NA-1/NOPB is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's still important to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the LM5021NA-1/NOPB, start by checking the input and output voltages, as well as the device's operating temperature. Use an oscilloscope to check for oscillations or noise on the input and output. Also, verify that the device is properly soldered and that there are no manufacturing defects.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5021NA-1/NOPB Overview

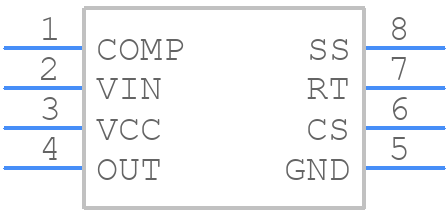

Use the download button to access the LM5021NA-1/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM502,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
