LM5022MMX/NOPB - Texas Instruments

Description: Switching Controllers 6-60V Wide Vin, Current Mode Boost and SEPIC Controller 10-VSSOP -40 to 125

Download LM5022MMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

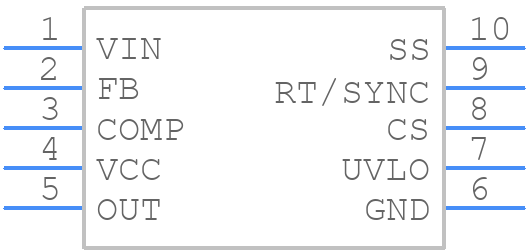

LM5022MMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM5022MMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
LM5022MMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

LM5022MMX/NOPB Details

  • Manufacturer Part Number:

    LM5022MMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10 A

  • Output Voltage-Max:

    300 V

  • Output Voltage-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2200 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM5022MMX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM5022MMX/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the input and output stages to reduce noise coupling.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low equivalent series resistance (ESR). It's also important to decouple the input and output stages properly to prevent oscillation.
  • The LM5022MMX/NOPB can handle input voltages up to 42V, but it's recommended to keep the input voltage below 40V to ensure reliable operation and to prevent damage to the device.
  • The LM5022MMX/NOPB is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. Ensure that the device is properly heatsinked and that the thermal design is adequate to prevent overheating.
  • To troubleshoot issues with the LM5022MMX/NOPB, start by checking the input and output voltage levels, as well as the current draw. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for further guidance.
