A good PCB layout for the LM5023MM-2/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor has a low ESR, the input capacitor is properly sized, and the feedback resistors are chosen to provide a stable gain. Additionally, ensure that the device is operated within its recommended operating conditions and that the input voltage is within the specified range.
The LM5023MM-2/NOPB can operate in ambient temperatures up to 125°C. However, the device's performance and reliability may degrade at higher temperatures, so it's recommended to operate the device at temperatures below 85°C for optimal performance.
Yes, the LM5023MM-2/NOPB is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing practices to ensure the device's reliability in the application.
To troubleshoot issues with the LM5023MM-2/NOPB, start by verifying that the device is properly powered and that the input and output voltages are within the specified ranges. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. Use an oscilloscope to check the output waveform and verify that it's within the expected specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5023MM-2/NOPB Overview

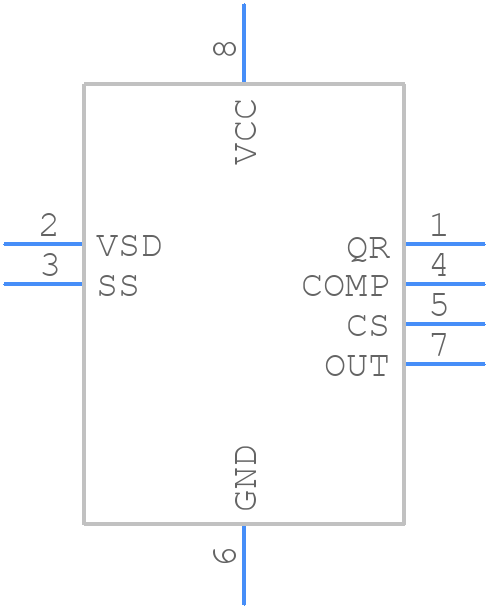

Use the download button to access the LM5023MM-2/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM502,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
