A good PCB layout for the LM5025AMTC/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a low-impedance output capacitor.
The LM5025AMTC/NOPB has an operating ambient temperature range of -40°C to 125°C. However, the device can be operated at a higher temperature range with derating. It's recommended to consult the datasheet for more information on thermal derating.
Yes, the LM5025AMTC/NOPB is suitable for high-reliability applications. It's manufactured using a high-reliability process and has undergone rigorous testing to ensure its performance and reliability. However, it's recommended to consult the datasheet and application notes for more information on using the device in high-reliability applications.
To troubleshoot issues with the LM5025AMTC/NOPB, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the input and output capacitors are of high quality. Use an oscilloscope to check for oscillations or other anomalies. Consult the datasheet and application notes for more troubleshooting tips.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5025AMTC/NOPB Overview

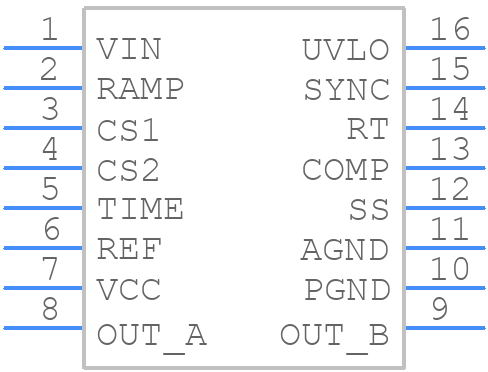

Use the download button to access the LM5025AMTC/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM502,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
