Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are properly selected and placed. Additionally, the datasheet provides a stability analysis section that can help you determine the stability of the device.
The maximum ambient temperature range for the LM5025BMTC/NOPB is -40°C to 125°C, but the device's performance may degrade at higher temperatures. It's recommended to derate the device's performance according to the thermal derating curve provided in the datasheet.
Yes, the LM5025BMTC/NOPB is qualified for automotive and high-reliability applications, and it meets the requirements of the AEC-Q100 standard. However, it's recommended to consult with Texas Instruments' application engineers to ensure the device meets the specific requirements of your application.
To troubleshoot issues, start by verifying the PCB layout and component values against the recommended design. Then, use a oscilloscope to measure the input and output waveforms, and check for any signs of oscillation or instability. Finally, consult the datasheet's troubleshooting section and Texas Instruments' application notes for guidance on specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5025BMTC/NOPB Overview

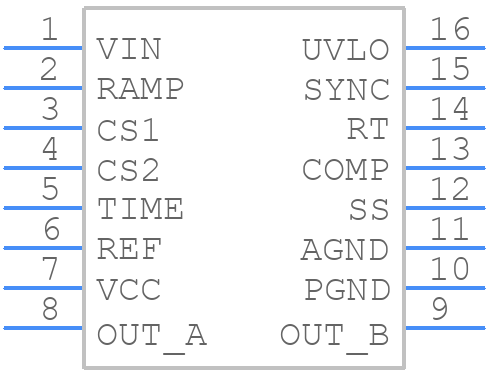

Use the download button to access the LM5025BMTC/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM502,
or try a keyword search, such as Switching Regulator or Controllers
