Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are properly selected and placed. Additionally, ensure that the feedback loop is properly compensated and the gain is set correctly.
The maximum ambient temperature range for the LM5025BMTCX/NOPB is -40°C to 125°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability.
Yes, the LM5025BMTCX/NOPB is qualified for automotive and high-reliability applications, but it's recommended to follow the specific requirements and guidelines for these applications, such as AEC-Q100 and ISO 26262.
To troubleshoot issues, follow a systematic approach, starting with checking the input voltage, output voltage, and current. Use an oscilloscope to check for oscillations or noise, and verify that the component values and PCB layout match the recommended design. Consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5025BMTCX/NOPB Overview

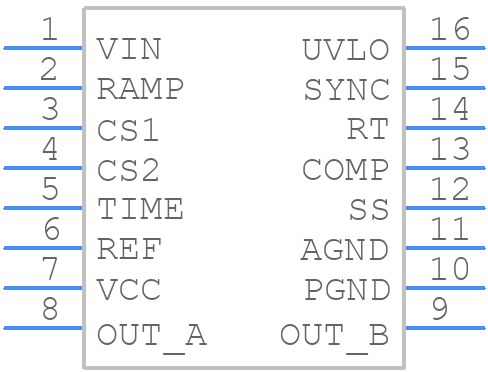

Use the download button to access the LM5025BMTCX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM502,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
