Texas Instruments provides a recommended PCB layout in the LM5025 datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help ensure optimal performance, low noise, and high reliability.
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. TI recommends using low-ESR capacitors with a voltage rating of at least 2x the maximum input voltage. A capacitance value of 10uF to 22uF is typically suitable for most applications.
The LM5025 is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
Yes, the LM5025 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow proper design and manufacturing guidelines to ensure the device meets the specific application requirements.
Common issues with the LM5025 can often be attributed to poor PCB layout, inadequate decoupling, or incorrect component selection. TI provides a troubleshooting guide in the datasheet, which includes steps to identify and resolve common issues. Additionally, TI's support resources, such as the E2E forum, can provide further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5025DMTC/NOPB Overview

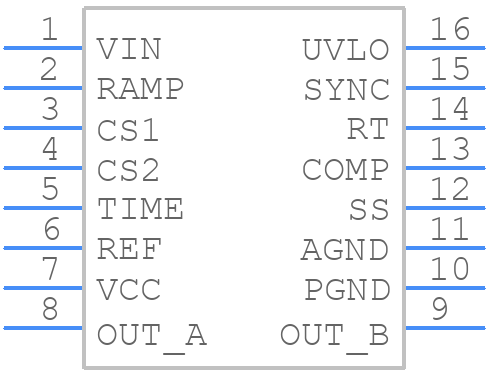

Use the download button to access the LM5025DMTC/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM502,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
