A good PCB layout for the LM5027ASQ/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the input and output stages to reduce noise coupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low equivalent series resistance (ESR). It's also important to decouple the input and output stages properly to prevent oscillation.
The LM5027ASQ/NOPB is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate within a narrower temperature range (e.g., 0°C to 85°C) for optimal performance.
Yes, the LM5027ASQ/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability systems.
To troubleshoot issues with the LM5027ASQ/NOPB, start by checking the input and output voltage levels, as well as the device's operating temperature. Verify that the input and output capacitors are of high quality and properly connected. Also, check for any signs of overheating, such as excessive heat generation or thermal shutdown. Consult the datasheet and application notes for more detailed troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5027ASQ/NOPB Overview

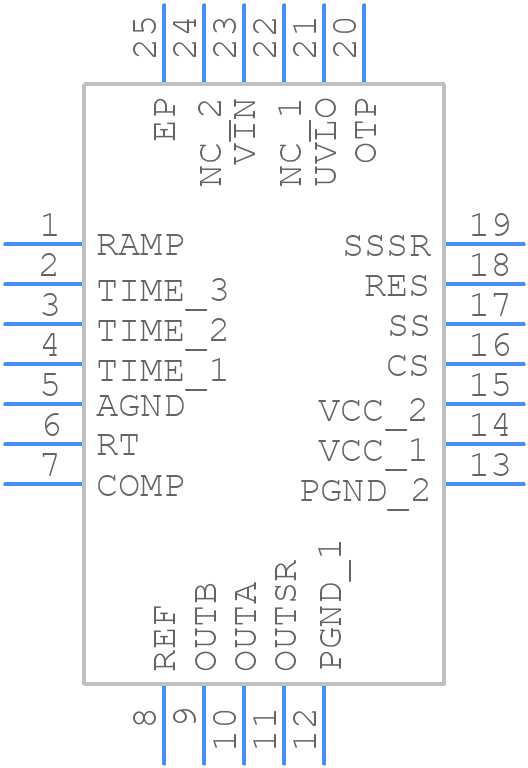

Use the download button to access the LM5027ASQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM502,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
